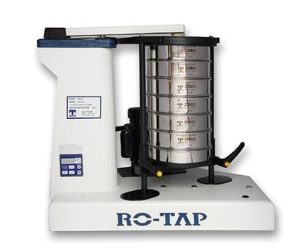

Used for particle size analysis by separating a sample into different size fractions using a combination of horizontal oscillating and vertical tapping motions. It automates the sieving process to provide consistent and repeatable results for a wide range of materials across various industries, including food, chemicals, and mining.

Product Description

Features:

  • Industry standard in test sieve shakers
  • Unique two-dimensional operation – a horizontal, circular motion and a vertical, tapping motion – allows material particles to stratify and seek critical openings in the test media resulting in the most accurate and consistent particle analysis testing
  • 99 minute digital timer/clock
  • Serialized for complete traceability
  • Designed for heavy duty use and requires minimal maintenance
  • The RX-30 model is recommended for testing with full height 12 in. diameter test sieves
  • One sample can be tested on a series of six sieves of different openings with one operation of the RO-TAP®
  • Full height brass sieves with stainless steel cloth are normally recommended but brass sieves with brass cloth are also available; half height sieves may be special ordered
  • Overall dimensions 28 W x 21 D x 25 H
  • Shipping weight: 190 lbs
  • 150 taps/minute; 5 lb, 6 oz hammer weight

Specifications

Range:5 in. down through 500 mesh (25 micron)
Capacity:Full Height – 4 Sieves, Intermediate Height – 6 Sieves, Half Height – 8 Sieves
Power:220 V / 60 Hz
Other:12 in. sieves
Other:278 +/-10 oscillations/minute with 1 in x 0.75 in. displacement
Dimensions:28 x 21 x 25 in. / 71 x 54 x 64 cm
Weight:180 lbs / 82 kg
Model No.:RX-30-16

Additional Models

Catalog NumberModel/Volts/Phase/Hertz
RO-TAP® RX-29 – 110/1/60
RO-TAP® RX-29 – 230/1/50
RO-TAP® RX-29 – 220/1/60
RO-TAP® RX-30 – 110/1/60
RO-TAP® RX-30 – 230/1/50
RO-TAP® RX-30 – 220/1/60
RO-TAP® II RX-94 – 110/1/60
RO-TAP® II RX-94 – 220/1/60
W. S. TYLER® is a trademark of Haver Tyler Corporation.
RO-TAP® is the registered trademark of Haver Tyler Corporation.
